Relay Sockets | Mounting Hardware
!
Mfg: ECG Philips
RLY9001

ECG Relay Hold Downs (5-pak)

ECG # RLY9101

  • NTE Equivalent: R95-001
  • 5-Pak
  • For Sockets # 9106A, 9107, 9111, 9117, 9120, 9121, 9122
  • Length: 1.55"
  • Width: .938"
Mfg: Philips ECG
RLY9004

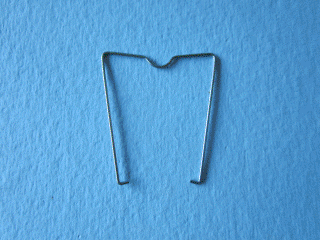

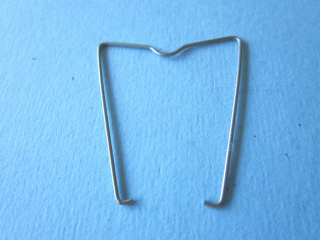

ECG Relay Hold Downs (5-pak)

ECG # RLY9004

  • NTE Equivalent: R95-004
  • 5-Pak
  • For Sockets # 9108, 9109
  • Length: 1.44"
  • Width: 1.25"
Mfg: ECG Philips
RLY9010

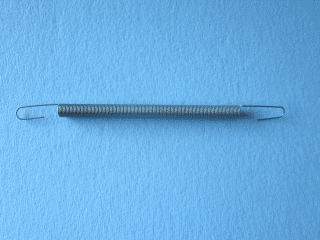

ECG Hold Down Spring

ECG # RLY9010

  • NTE Equivalent: RLY9010

For use with the following sockets:

  • R95-101, 102, 104, 113, 114, 115, 116, 117, 118, 119,123, 124, 156, 159
  • Diameter: .244"
  • Length: 3.30"
Mfg: Philips ECG
RLY9103

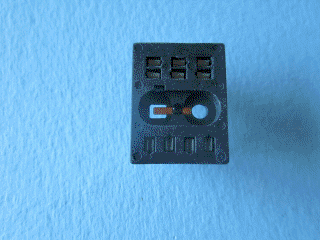

RLY9103 - ECG Relay Socket

ECG # RLY9103

  • NTE Equivalent: R95-103
Mfg: Philips ECG
RLY9104

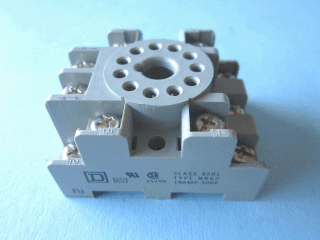

11-Pin Octal Socket - ECG Relay Socket

ECG # RLY9104

  • NTE Equivalent: R95-104
  • Surface Mount
  • Pressure Clamp Screws
  • For Series: 10 & 10H 3PDT, 11 & 11H 3PDT, 42, 43 & 49 DPDT
  • Max. Wire Size: 2-#12AWG
  • Electrical Ratings: 10-Amps @ 600-Volts
Mfg: Philips ECG
RLY9107

14-Pin PC Mount - ECG Relay Socket

ECG # RLY9107

  • NTE Equivalent: R95-107
  • PC Mount
  • Solder Terminals
  • For ECG Relay Series: 20 & 21 4PDT
  • Electrical Ratings: 300-Volt @ 5-Amps
Mfg: Philips ECG
RLY9109

16-Pin PC Mount - ECG Relay Socket

ECG # RLY9109

  • NTE Equivalent: R95-109
  • 16 Pin
  • PC Mount
  • Solder Terminals
  • For ECG Relay Series: 24, 25 & 27 4PDT
  • Electrical Ratings: 300-Volt @ 10-Amps
Mfg: Philips ECG
RLY9111

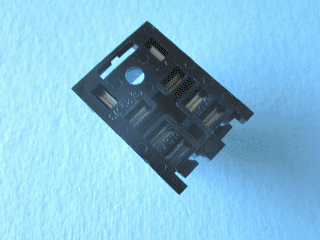

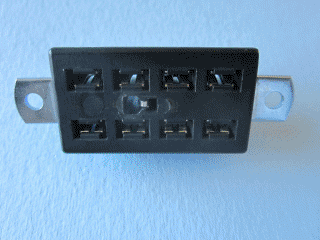

8-Pin Panel Mount - ECG Relay Socket

ECG # RLY9111

  • NTE Equivalent: R95-111
  • 8 Pin
  • PC Mount
  • Accepts .187" Blade Terminal
  • For ECG Relay Series: 22, 23 SPDT , DPDT
  • Electrical Ratings: 10-Amps @ 300-Volts
Mfg: Philips ECG
RLY9113

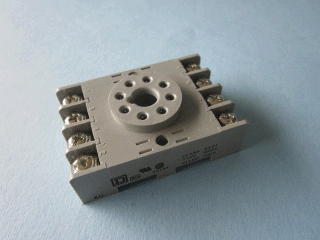

8-Pin Octal Socket For DIN Rail- ECG Relay Socket

ECG # RLY9113

  • NTE Equivalent: R95-113



  • DIN Rail Mount
  • Easy Snap-Mount
  • Surface Mountable
  • Pressure Clamp Screws
  • ECG Relay Applications: Series 10 & 10H DPDT, 11 & 11H DPDT,  40, 41,48 & 40 DPDT
  • Max. Wire Size: 1-#12AWG
  • Electrical Ratings: 10-Amp @ 600-Volt
Mfg: Philips ECG
RLY9122

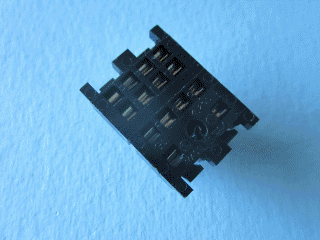

14-Pin Blade Socket

ECG # RLY9122

  • NTE Equivalent: R95-122
  • Panel Mount
  • Solder Lug Terminals
  • For ECG Relay Series: 20 & 21 4PDT
  • Electrical Ratings: 300-Volt @ 7-Amps
