Toggle Switches

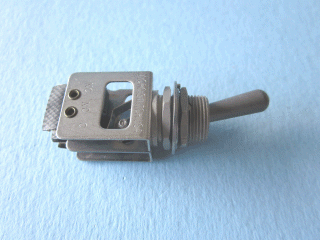

DPDT - Toggle Switch

Mfg: Micro Switch
62AT11-3

Micro Switch # 62AT11-3

  • Action: On-On
  • DPDT
  • No Ratings

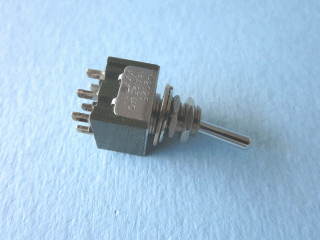

DPDT - Toggle Switch

Mfg: NKK
M-2025

NKK Part # M-2025

  • Action: On-None-(On)
  • 6-Amp # 125VAC / 3-Amp @ 250 VAC
  • Panel Mount

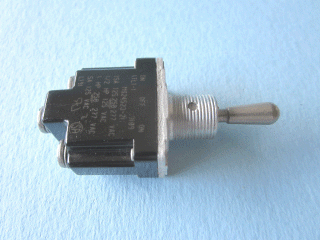

SPDT - Toggle Switch

Mfg: Micro-Switch
MS24523-21
  • Action: On-Off-On
  • Rating: 15 Amp @ 125/250/277VAC
  • Terminal Type: Screw Terminals
  • Mounting Hole: .480"

Micro-Switch # MS24523-21

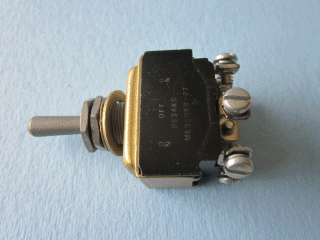

DPDT - Momentart Toggle Switch

Mfg: Micro Switch
MS35059-27

Micro-Switch # MS35059-27

  • Action: (On)-Off-(On )
  • Rating: 18 Amp @ 28VDC
  • Terminal Type: Screws
  • Mount: Threaded Barrel & Nut

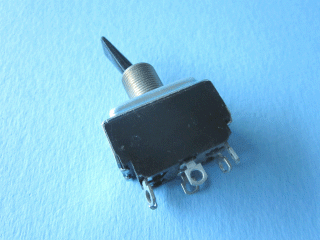

DPDT - Paddle Handle Toggle Switch

MfG: GC Electronics
35-189

GC Electronics # 35-189

  • 6 Amp @ 125VAC

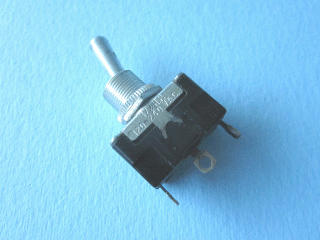

SPDT - Bat Handle Toggle Switch

MfG: GC Electronics
35-086
  • 15 Amp @ 125 VAC
  • 10 Amp @ 250 VAC

GC Electronics # 35-086

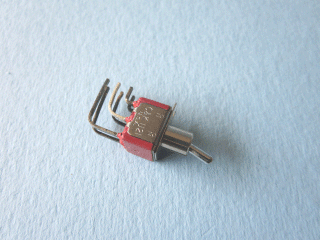

DPDT - Miniature Toggle Switch

Mfg: Sprague
QSP-1016-01

Specifications:

  • Action: On-None-On
  • Rating: 5 Amp @ 120VAC / 10-Amp @ 250VAC
  • Terminal Type: PC Terminals Right Angle
  • Vertical Mount

Sprague # QSP-1016-01

SPST - Toggle Switch

Mfg: Miyama
MS-209-210

Miyama Part # MS209-210

  • Rating: 10 Amp @ 125VAC
