Relay Sockets | Mounting Hardware

11-Pin Octal Socket - ECG Relay Socket

Mfg: Philips ECG
RLY9104
  • Surface Mount
  • Pressure Clamp Screws
  • For Series: 10 & 10H 3PDT, 11 & 11H 3PDT, 42, 43 & 49 DPDT
  • Max. Wire Size: 2-#12AWG
  • Electrical Ratings: 10-Amps @ 600-Volts
  • NTE Equivalent: R95-104

ECG # RLY9104

14-Pin PC Mount - ECG Relay Socket

Mfg: Philips ECG
RLY9107
  • PC Mount
  • Solder Terminals
  • For ECG Relay Series: 20 & 21 4PDT
  • Electrical Ratings: 300-Volt @ 5-Amps
  • NTE Equivalent: R95-107

ECG # RLY9107

16-Pin PC Mount - ECG Relay Socket

Mfg: Philips ECG
RLY9109
  • 16 Pin
  • PC Mount
  • Solder Terminals
  • For ECG Relay Series: 24, 25 & 27 4PDT
  • Electrical Ratings: 300-Volt @ 10-Amps
  • NTE Equivalent: R95-109

ECG # RLY9109

8-Pin Panel Mount - ECG Relay Socket

Mfg: Philips ECG
RLY9111
  • 8 Pin
  • PC Mount
  • Accepts .187" Blade Terminal
  • For ECG Relay Series: 22, 23 SPDT , DPDT
  • Electrical Ratings: 10-Amps @ 300-Volts
  • NTE Equivalent: R95-111

ECG # RLY9111

8-Pin Octal Socket For DIN Rail- ECG Relay Socket

Mfg: Philips ECG
RLY9113
  • DIN Rail Mount
  • Easy Snap-Mount
  • Surface Mountable
  • Pressure Clamp Screws
  • ECG Relay Applications: Series 10 & 10H DPDT, 11 & 11H DPDT,  40, 41,48 & 40 DPDT
  • Max. Wire Size: 1-#12AWG
  • Electrical Ratings: 10-Amp @ 600-Volt
  • NTE Equivalent: R95-113

ECG # RLY9113

14-Pin Blade Socket

Mfg: Philips ECG
RLY9122
  • Panel Mount
  • Solder Lug Terminals
  • For ECG Relay Series: 20 & 21 4PDT
  • Electrical Ratings: 300-Volt @ 7-Amps
  • NTE Equivalent: R95-122

ECG # RLY9122

RLY9126 - Philips ECG Relay Rail End Clips

Mfg: Philips ECG
RLY9126
  • NTE Equivalent: R95-126

ECG # RLY9126

RLY9127 - Philips ECG Relay Rail Spacers

Mfg: Philips ECG
RLY9127
  • DIN Rail Spacer
  • NTE Equivalent: R95-127

ECG # RLY9127

RLY9134 - Philips ECG Relay Socket

Mfg: Philips ECG
RLY9134
  • Socket
  • 22-Pin Blade
  • Panel Mount
  • NTE Equivalent: RLY9134

ECG # RLY9134

22-Pin Blade Socket

Mfg: Philips ECG
RLY9135
  • PC Board Mount
  • Solder Terminals
  • For Series: 24 & 25 6PDT
  • Electrical Ratings: 300-Volt @ 10-Amps
  • NTE Equivalent: RLY9135

ECG # RLY9135

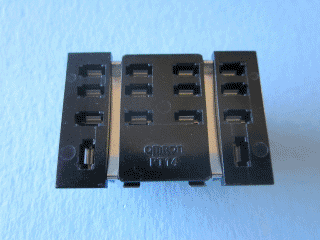

14-PinBlade Socket

Mfg: NTE Inc.
RLY9157
  • Panel Mount
  • Solder Terminals
  • Accepts .187" Blade Terminals
  • 4PDT Applications
  • Electrical Rating: 300-Volt @ 10-Amps
  • NTE Equivalent: RLY9010
  • Also Has Omron Part # PT14

NTE # RLY9157

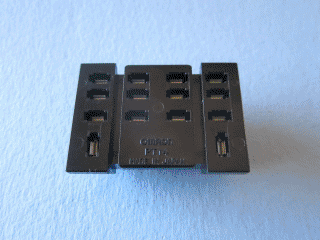

14-Pin Blade Socket

Mfg: ECG Philips
RLY9158

ECG # RLY9158

  • NTE Equivalent: RLY9158
  • PC Board Mount
  • Solder Terminals
  • Accepts .187" Blade Terminals
  • 4PDT Applications
  • Electrical Rating: 300-Volt @ 10-Amps
