Dual Row Barrier Blocks

6-141 - 6 Terminal 141 Series Barrier Block

Mfg: Cinch
6-141

Specifications:

  • Length: 3.325"
  • Width: 1.115"
  • Mounting Holes: 3.042" on center

Cinch # 6-141

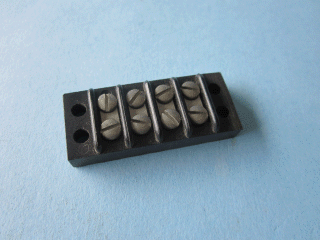

BB-0001 - 4 Terminal Mini Barrier Block

BB-0001

Specifications:

  • Length: 1.504"
  • Width: .672"
  • Mounting Holes: .250" on center

6-172 - 6 Terminal Mini Barrier Block

Mfg: Cinch
6-172

Specifications:

  • Length: 2.00"
  • Width: .63"
  • Mounting Holes: .250" on center

Cinch # 6-172

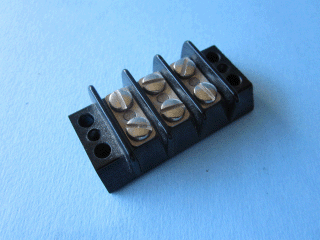

761 GP 03 - Kulka 3 Terminal Barrier Block

Mfg: Kukla
761 GP 03

Specifications:

  • Length: 2.00"
  • Width: 1.0"

Kukla # 673

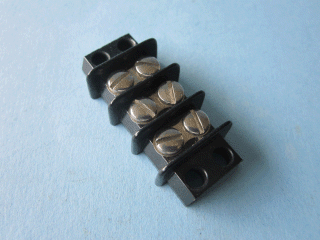

600GP-3 - Kulka 3 Terminal Barrier Block

Mfg: Kulka
600GP-3

Specifications:

  • Overall Length: 1.762"
  • Overall Width: .853"
  • Mounting Holes: .375" on center

Kulka # 600GP-3

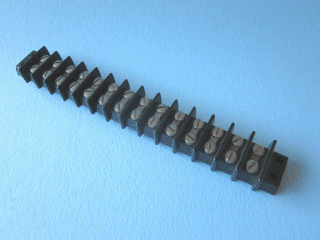

602GP-14 - Kulka 14 Terminal Barrier Block

Mfg: Kulka
602GP-14

Specifications:

  • Terminal Spacing: 9/16"
  • Length: 8.85"
  • Width: 1.32"
  • 300 Volt AC/DC
  • Center to Center Mounting Holes: 8.44"

Kulka # 602GP-14

602GP-17 - Kulka 17 Terminal Barrier Block

Mfg: Kulka
602GP-17

Specifications:

  • Length: 10.54"
  • Width: 1.32"
  • Terminal Spacing: 9/16"
  • 300 Volt AC/DC
  • Center to Center Mounting Holes 10.13"

Kulka # 602GP-17

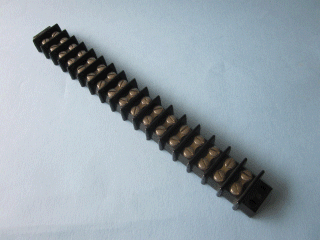

602GP-18 - Kulka 18 Terminal Barrier Block

Mfg: Kulka
602GP-18

Specifications:

  • Overall Length: 11.120"
  • Overall Width: 1.32"
  • Thickness: .064"
  • Wire Size: 10-18 AWG
  • Pitch: .057"

Kulka # 602GP-18

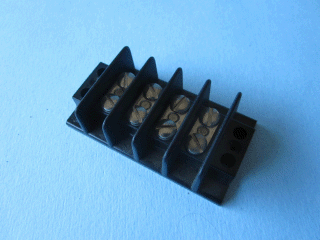

4-541 - Cinch 4 Terminal Barrier Block

Mfg: Cinch / TRW
4-541

Specifications:

  • Length: 2.488"
  • Width: 1.369"
  • Thickness: .695"

Cinch / TRW # 4-541

3-140Y - 3 Terminal 140Y Series Barrier Block

Mfg: Cinch
3-140Y

Specifications:

  • Length: 1.796"
  • Width: .869"
  • Voltage: 250 VAC Max
  • Current: 15 Amp

Cinch # 3-140Y

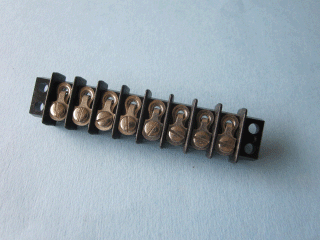

8-140Y - 8 Terminal 140Y Series Barrier Block

Mfg: Cinch
8-140Y

Specifications:

  • Length: "
  • Thickness: "
  • Width: "
  • Screw Size: 5-40

Cinch # 8-140Y

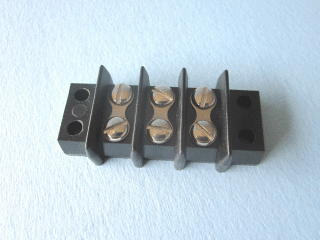

3-142 - 3 Terminal 142 Series Barrier Block

Mfg: Cinch
3-142

Specifications:

  • Voltage Rating: 250VAC RMS Maximum
  • Current Rating: 30 Amps Maximum
  • Maximum Watts Per Terminal
  • Overall Length: 2.665"
  • Thickness: .632"
  • Overall Width: 1.307"
  • Screw Size: 8-32

Cinch # 3-142

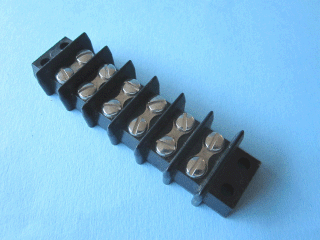

6-142 - 6 Terminal 142 Series Barrier Block

Mfg: Cinch
6-142

Specifications:

  • Voltage Rating: 250VAC RMS Maximum
  • Current Rating: 30 Amps Maximum
  • Maximum Watts Per Terminal
  • Overall Length: 4.344"
  • Thickness: .632"
  • Overall Width: 1.312"
  • Screw Size: 8-32

Cinch # 6-142

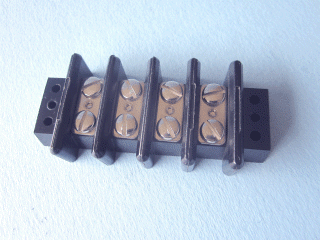

4-150 - 4 Terminal 150 Series Barrier Block

Mfg: Cinch
4-150

Specifications:

  • Voltage Rating: 250
  • Current Rating: 40 Amps
  • Overall Length: 3.888"
  • Thickness: .761"
  • Overall Width: 1.813"
  • Screw Size: 10-32

Cinch # 4-150
