Transformers - Flybacks

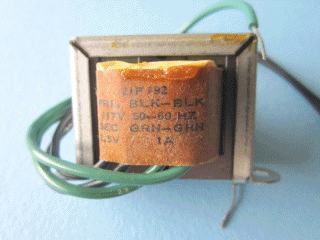

21F192 - 2.5 Volt @ 1.0Amp

Mfg: Thordarson
21F192

Thordarson # 21F192

Specifications:

  • 115Volt to 2.5-Volt @ 1-Amp

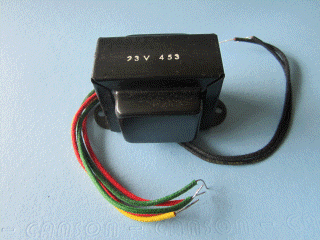

23V453 - Power Tranformer

23V453

Thordarson # 23V453

Specifications:

  • Pri: 117Volt 50-60Hz
  • Sec # 1: 44VCT @ .4A DC In FWCT Circuit
  • Sec # 2: 6.3-Volt @ .5-Amps

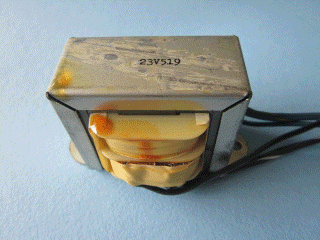

23V519 - Thordarson Transformer

23V519

Specifications:

  • Pri. 115-230V, 50/60HZ
  • Sec. 20V.C.T. @ 1.0A

Thordarson - 23V519

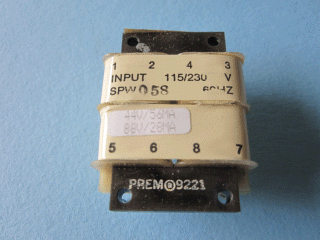

SPW-058 Low Profile Transformer

Mfg: Prem Magnetics
SPW-058

Specifications:

  • Dual Input: 115/230 Volt
  • VA: 2.5
  • Parallel: 44Volt @ 56mA
  • Series: 88Volt @ 28ma
  • Length: 1.89"
  • Width: 1.484"
  • Height: .658"

Prem Magnetics - SPW-058

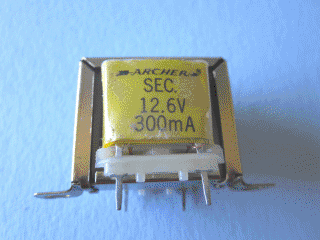

12.6VAC - Transformer

Mfg: Archer
273-1385A

Radio Stack # 273-1385A

  • 12.6VAC @ 300mA
  • 120VAC Input
