Molex - Pin & Socket Connectors

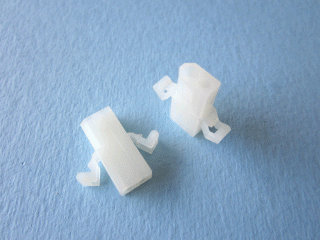

03-06-1022 - Molex Pin and Socket Receptacle Housing, 2 Circuits, with Pre-bent Mounting Ears

Mfg: Molex
03-06-1022
  • Circuits: 2
  • Length: .818"
  • Width: .340"
  • Thickness: .201" Main Body
  • Use Pin #:

Molex # 03-06-1022

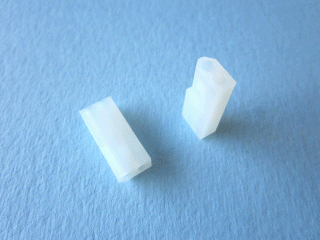

03-06-1023 | Pin & Socket Connectors 2 Circuit Receptacle

Mfg: Molex
03-06-1023
  • Circuits: 2
  • Length: .815"
  • Width: .346"
  • Thickness: .191" Main Body
  • Use Pin #:

Molex # 03-06-1023

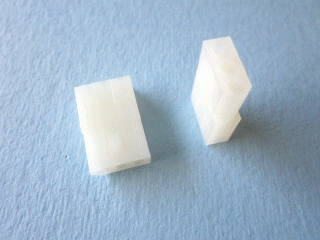

03-06-1032 | Pin and Socket Receptacle Housing, 3 Circuits, without Mounting

Mfg: Molex
03-06-1032
  • Circuits: 3
  • Length: .779"
  • Width: .491"
  • Thickness: .231" Main Body
  • Use Pin: Standard .062" Pin & Socket

Molex # 03-06-1032

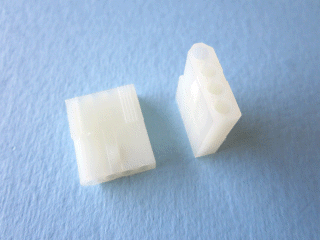

03-06-1042 | Pin and Socket Receptacle Housing, 4 Circuits, without Mounting Ears

Mfg: Molex
03-06-1042
  • Circuits: 4
  • Length: .775"
  • Width: .627"
  • Thickness: .205" Main Body
  • Use Pin #:

Molex # 03-06-1042

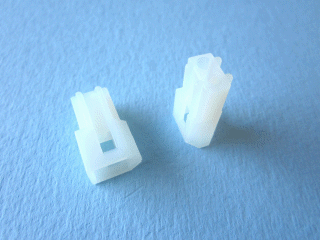

03-06-2023 | Pin & Socket Connectors 2 Circuit Plug Natural

Mfg: Molex
03-06-2023
  • Circuits: 2
  • Length: .786"
  • Width: .450"
  • Thickness: .294" Main Body
  • Use Pin #:

Molex # 03-06-2023

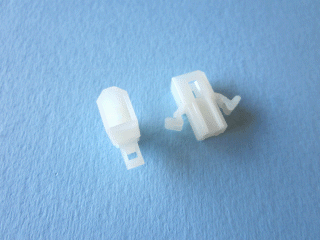

03-06-2024 | Pin & Socket Connectors 2 Circuit Plug Natural

Mfg: Molex
03-06-2024
  • Circuits: 2
  • Length: .783"
  • Width: .446"
  • Thickness: .297" Main Body
  • Use Pin #:

Molex # 03-06-2024

03-06-2042 - Molex Pin and Socket Plug Housing, 4 Circuits

Mfg: Molex
03-06-2042
  • Circuits: 4
  • Length: .744"
  • Width: .741"
  • Thickness: .292" Main Body
  • Use Pin #:

Molex # 03-06-2042

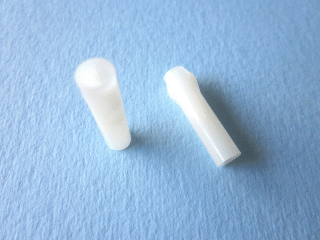

03-09-1011 - Molex Pin and Socket Receptacle Housing, 1 Circuit, Friction Lock

Mfg: Molex
03-09-1011
  • Circuits: 1
  • Length: 1.005"
  • Diameter: .232"
  • Use Pin #:

Molex # 03-09-1011

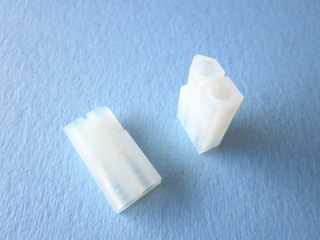

Pin and Socket Receptacle Housing, 2 Circuits, without Mounting Ears, with Ramps

Mfg: Molex
03-09-1022
  • Circuits: 2
  • Length: 1.032"
  • Width: .539"
  • Thickness: .251" Main Body
  • Use Pin #:

Molex # 03-09-1022

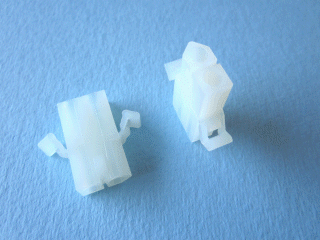

Pin and Socket Receptacle Housing, 2 Circuits, with Pre-bent Mounting Ears, with Ramps

Mfg: Molex
03-09-1027
  • Circuits: 2
  • Length: 1.036"
  • Width: .541"
  • Thickness: .254" Main Body
  • Use Pin #:

Molex # 03-09-1027

Pin & Socket Connectors 3 Circuit Receptacle

Mfg: Molex
03-09-1032
  • Circuits: 3
  • Length: 1.032"
  • Width: .672"
  • Thickness: .237" Main Body
  • Use Pin #:

Molex # 03-09-1032

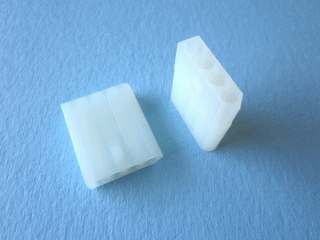

Pin and Socket Receptacle Housing, 4 Circuits, Single Row

Mfg: Molex
03-09-1042
  • Circuits: 4
  • Length: 1.031"
  • Width: .874"
  • Thickness: .244" Main Body
  • Use Pin #:

Molex # 03-09-1042

Pin & Socket Connectors 15C Receptacl

Mfg: Molex
03-09-1151
  • Circuits: 15
  • Overall Length: 1.728"
  • Width: .729"
  • Thickness: .966" Main Body
  • Use Pin #: 02-09-1118

Molex # 03-09-1151

Pin and Socket Receptacle Housing, 15 Circuits, with Pre-bent Mounting Ears, with Ramps

Mfg: Molex
03-09-2152
  • Circuits: 15
  • Overall Length: 1.628"
  • Width: .628"
  • Thickness: 1.007" Main Body
  • Use Pin #: 02-09-2118

Molex # 03-09-2152

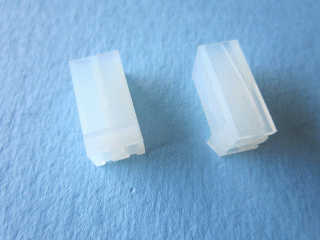

Crimp Terminal Housing, Friction Ramp, 2 Circuits

Mfg: Molex
09-50-3021
  • Circuits: 2
  • Length: .628"
  • Width: .310"
  • Thickness: .252" Main Body
  • Use Pin #:

Molex # 09-50-3021

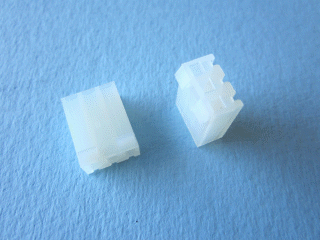

Crimp Terminal Housing, Friction Ramp, 3 Circuits

Mfg: Molex
09-50-3031
  • Circuits: 3
  • Length: .627"
  • Width: .467"
  • Thickness: .250" Main Body
  • Use Pin #

Molex # 09-50-3031

Crimp Terminal Housing, Friction Ramp, 5 Circuits

Mfg: Molex
09-50-3041-P
  • Circuits: 5
  • Length: .626"
  • Width: .623"
  • Thickness: .252" Main Body
  • Use Pin #:08-50-0106

Molex # 09-50-3041

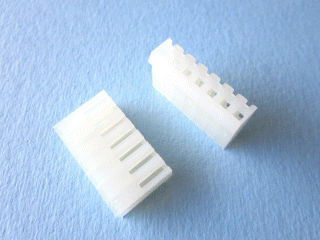

Crimp Terminal Housing, Friction Ramp, 7 Circuits

Mfg: Molex
09-50-3071
  • Circuits: 8
  • Length: .627"
  • Width: 1.091"
  • Thickness: .252" Main Body
  • Use Pin #:

Molex # 09-50-3071

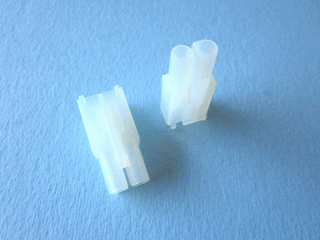

Pin and Socket Receptacle Housing with Positive Latch

Mfg: Molex
19-09-1029
  • Circuits: 2
  • Length: 1.171"
  • Width: .568"
  • Thickness: .311" Main Body
  • Use Pin #:

Molex # 19-09-1029

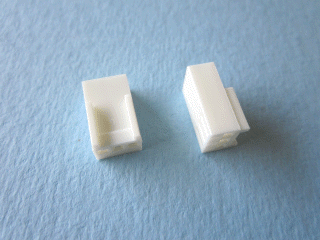

22-01-1033 - Molex 3 Position Female Housing

Mfg: Molex
22-01-1033
  • Circuits: 3
  • Length: .532"
  • Width: .315"
  • Thickness: .192" Main Body
  • Use Pin #:

Molex # 22-01-1033

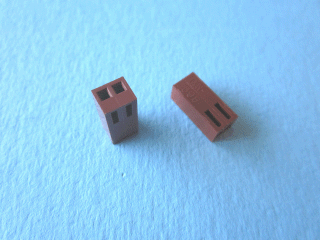

.100 Terminal Housing; Without Lock Ramp; 2 Circuit

Mfg: Molex
22-01-2021
  • Circuits: 2
  • Length: .501"
  • Width: .220"
  • Thickness: .190" Main Body
  • Use Pin #:

Molex # 22-01-2021

22-01-3027 - Molex 2 Position Female Connector Housing

Mfg: Molex
22-01-3027
  • Circuits: 2
  • Length: .502"
  • Width: .219"
  • Thickness: .185" Main Body
  • Use Pin #:

Molex # 22-01-3027

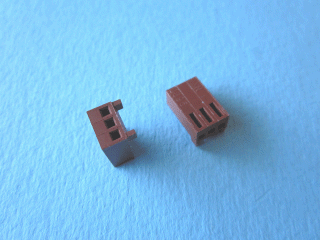

22-01-3037 - Molex 3 Position Female Housing

Mfg: Molex
22-01-3037
  • Circuits: 3
  • Length: .506"
  • Width: .319"
  • Thickness: .190" Main Body
  • Use Pin #:

Molex # 22-01-3037

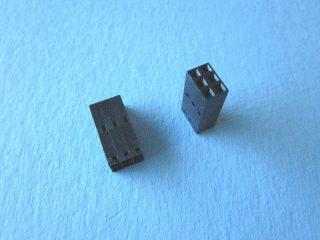

Connector Housing 6 Pos

Mfg: Molex
22-55-2061
  • Circuits: 6
  • Length: .600"
  • Width: .294"
  • Height: .196"
  • Use Pin #:

Molex # 22-55-2061

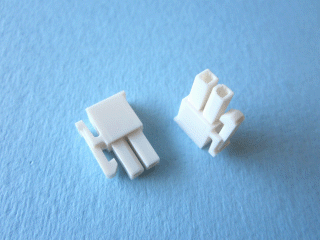

Receptacle Housing, Dual Row, 2 Circuits

Mfg: Molex
39-01-2025
  • Circuits: 2
  • Length: .778"
  • Width: .385"
  • Thickness: .210" Main Body
  • Use Pin #:

Molex # 39-01-2025
