Jones Plugs & Sockets

  • Features for 300 Series
  • Solder Lug terminals with .093" x .062" (2.36mm x 1.57mm) wiring holes.
  • For use in cable-to-panel and cable-to-cable applications.
  • Designed for light and medium duty.
  • Plug prongs are .156" (3.96mm) wide and .047" (1.19mm) thick.
  • Polarized to prevent wrong-way insertion
  • Plugs have projecting flat blades, sockets have recessed twin bellows.
  • Cable clamps of zinc and clear irridite-plated steel used for strain relief.

P304AB - Cinch Jones 4 Conductor Plug

Mfg: Cinch
P304AB

Specifications:

  • Number Contacts: 4
  • Voltage Rating: 250-Volt
  • Current Rating: 10-Amp
  • Gender: Male
  • Mounting: Angle Brackets

Cinch Jones # P304AB

P306AB - Cinch Jones 6 Conductor Plug

Mfg: Cinch
P306AB

Specifications:

  • Number Contacts: 6
  • Voltage Rating: 250-Volt
  • Current Rating: 10-Amp
  • Gender: Male
  • Mounting: Angle Brackets

Cinch Jones # P306AB

P310AB - Cinch Jones 10 Conductor Plug

Mfg: Cinch
P310AB

Specifications:

  • Number Contacts: 10
  • Voltage Rating: 250-Volt
  • Current Rating: 10-Amp
  • Gender: Male
  • Mounting: Angle Brackets

Cinch Jones # P310AB

P312AB - Cinch Jones 12 Conductor Plug

Mfg: Cinch
P312AB

Specifications:

  • Number Contacts: 12
  • Voltage Rating: 250-Volt
  • Current Rating: 10-Amp
  • Gender: Male
  • Mounting: Angle Brackets

Cinch Jones # P312AB

P321AB - Cinch Jones 21 Conductor Plug

Mfg: Cinch
P321AB

Specifications:

  • Number Contacts: 21
  • Voltage Rating: 250-Volt
  • Current Rating: 10-Amp
  • Gender: Male
  • Mounting: Angle Brackets

Cinch Jones # P321AB

P321CCE - Cinch Jones 21 Conductor Plug

Mfg: Cinch
P321CCE

Specifications:

  • Number Contacts: 21
  • Voltage Rating: 250-Volt
  • Current Rating: 10-Amp
  • Gender: Male
  • Mounting: Cable Clamp on Side

Cinch Jones # P321CCE

P324CCT - Cinch Jones 24 Conductor Plug

Mfg: TRW-Cinch
P324CCT
No Longer Available

Specifications:

  • Number Contacts: 24
  • Voltage Rating: 250-Volt
  • Current Rating: 10-Amp
  • Gender: Male
  • Mounting: Cable, Clamp on Top

Cinch Jones # P324CCT

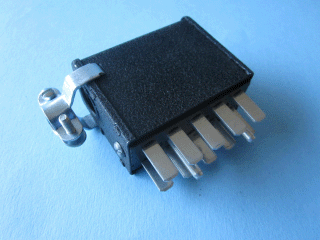

P2410CCE - Cinch Jones 10 Conductor Plug

Mfg: Cinch
P2410CCE

Specifications:

  • Number Contacts: 10
  • Voltage Rating: 250-Volt
  • Current Rating: 15-Amp
  • Gender: Male
  • Mounting: Cable Clamp on End

Cinch Jones # P2410CCE

P2410SB - Cinch Jones 10 Conductor Plug

Mfg: Cinch
P2410SB

Specifications:

  • Number Contacts: 10
  • Voltage Rating: 250-Volt
  • Current Rating: 15-Amp
  • Gender: Male
  • Mounting: Shallow Bracket

Cinch Jones # P2410SB

P303CCT - Cinch Jones 3 Conductor Plug

Mfg: Cinch
P303CCT
No Longer Available

Specifications:

  • Number Contacts: 3
  • Voltage Rating: 250-Volt
  • Current Rating: 10-Amp
  • Gender: Male
  • Mounting: Cable Clamp on Top

Cinch Jones # P303CCT

P302CCT - Cinch Jones 2 Conductor Plug

Mfg: Cinch
P302CCT
No Longer Available

Specifications:

  • Number Contacts: 2
  • Voltage Rating: 250-Volt
  • Current Rating: 10-Amp
  • Gender: Male
  • Mounting: Cable Clamp on Top

Cinch Jones # P302CCT

P306FP - Cinch Jones 6 Conductor Plug

Mfg: Cinch
P306FP

Specifications:

  • Number Contacts: 6
  • Voltage Rating: 250-Volt
  • Current Rating: 10-Amp
  • Gender: Male
  • Mounting: Flush Plate

Cinch Jones # P306FP

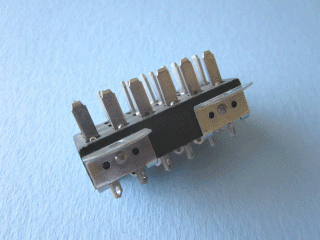

P318AB - Cinch Jones 18 Conductor Plug

Mfg: Cinch
P318AB

Specifications:

  • Number Contacts: 18
  • Voltage Rating: 250-Volt
  • Current Rating: 10-Amp
  • Gender: Male
  • Mounting: Angle Brackets

Cinch Jones # P318AB

P315AB - Cinch Jones 15 Conductor Plug

Mfg: Cinch
P315AB

Specifications:

  • Number Contacts: 15
  • Voltage Rating: 250-Volt
  • Current Rating: 10-Amp
  • Gender: Male
  • Mounting: Angle Brackets

Cinch Jones # P315AB

P315CCE - Cinch Jones 15 Conductor Plug

Mfg: Cinch
P315CCE
No Longer Available

Specifications:

  • Number Contacts: 15
  • Voltage Rating: 250-Volt
  • Current Rating: 10-Amp
  • Gender: Male
  • Mounting: Cable Clamp on Side

Cinch Jones # P315CCE

P333CCT - Cinch Jones 33 Conductor Plug

Mfg: Cinch
P333CCT

Specifications:

  • Number Contacts: 33
  • Voltage Rating: 250-Volt
  • Current Rating: 10-Amp
  • Gender: Male
  • Mounting: Cable Clamp on Top

Cinch Jones # P333CCT

P333AB - Cinch Jones 33 Conductor Plug

Mfg: Cinch
P333AB

Specifications:

  • Number Contacts: 33
  • Voltage Rating: 250-Volt
  • Current Rating: 10-Amp
  • Gender: Male
  • Mounting: Angle Brackets

Cinch Jones # P333AB

P310-RP - Cinch Jones 10 Conductor Plug

Mfg: Cinch
P310RP

Specifications:

  • Number Contacts: 10
  • Voltage Rating: 250-Volt
  • Current Rating: 10-Amp
  • Gender: Male
  • Mounting: Recessed Plate

Cinch Jones # P310RP

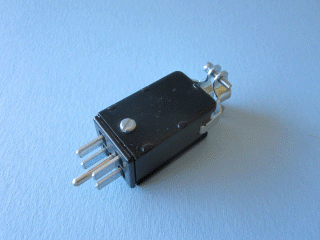

P2404CCT - Cinch Jones 4 Conductor Plug

Mfg: Cinch
P2404CCT

Specifications:

  • Number Contacts: 4
  • Voltage Rating: 250-Volt
  • Current Rating: 15-Amp
  • Gender: Male
  • Mounting: Cable Clamp on Top

Cinch Jones # P2404CCT

P312CCT - Cinch Jones 12 Conductor Plug

Mfg: Cinch
P312CCT

Specifications:

  • Number Contacts: 12
  • Voltage Rating: 250-Volt
  • Current Rating: 10-Amp
  • Gender: Male
  • Mounting: Cable Clamp on Top

Cinch Jones # P312CCT

P2406CCT - Cinch Jones 6 Conductor Plug

Mfg: Cinch
P2406CCT

Specifications:

  • Number Contacts: 6
  • Voltage Rating: 250-Volt
  • Current Rating: 15-Amp
  • Gender: Male
  • Mounting: Cable Clamp on Top

Cinch Jones # P2406CCT

P315CCT - Cinch Jones 15 Conductor Plug

Mfg: Cinch
P315CCT

Specifications:

  • Number Contacts: 15
  • Voltage Rating: 250-Volt
  • Current Rating: 10-Amp
  • Gender: Male
  • Mounting: Cable Clamp on Top

Cinch Jones # P315CCT

P2410CCT - Cinch Jones 10 Conductor Plug

Mfg: Cinch
P2410CCT

Specifications:

  • Number Contacts: 10
  • Voltage Rating: 250-Volt
  • Current Rating: 15-Amp
  • Gender: Male
  • Mounting: Cable Clamp on Top

Cinch Jones # P2410CCT

P324AB - Cinch Jones 24 Conductor Plug

Mfg: Cinch
P324AB

Specifications:

  • Number Contacts: 24
  • Voltage Rating: 250-Volt
  • Current Rating: 10-Amp
  • Gender: Male
  • Mounting: Angle Brackets

Cinch Jones # P324AB

P330SB - Cinch Jones 30 Conductor Plug

Mfg: Cinch
P330SB

Specifications:

  • Number Contacts: 30
  • Voltage Rating: 250-Volt
  • Current Rating: 10-Amp
  • Gender: Male
  • Mounting: Angle Brackets

Cinch Jones # P330SB
