IDC-Card Edge Connectors

Specifications for Philmore Connectors:

  • Contact Resistance:  30 Megohm max. at DC 100mA
  • Insulator;  1000 Megohm min. at DC 500 Volt
  • Current Rating;  1 Amp Dielectric With Standing
  • Voltage:  AC 500 Volt for 1 Minute
  • Operating Temperature;   -55C - + 105C
  • Contact;  Phosphor Bronze
  • Housing;  PBT & 30% Glass Fiber (UL 94V-0


20 Position Card Edge Connector

Mfg: Philmore

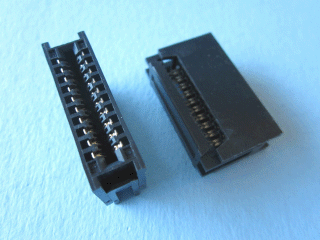

70-4320

Philmore # 70-4320

  • Insulation Displacement
  • 20 Pos. 2.54mm IDT RA
  • Length: 1.374"
  • Cable Mount

26 Position Card Edge Connector

Mfg: Philmore

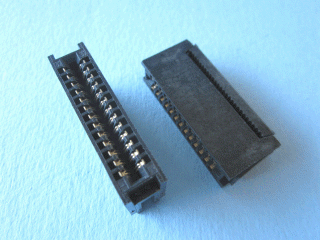

70-4326

Philmore # 70-4326

  • Insulation Displacement
  • 26 Pos. 2.54mm IDT RA
  • Length: 1.673"
  • Cable Mount

34 Position Card Edge Connector

Mfg: Philmore

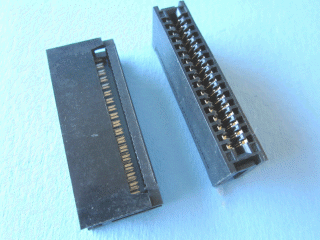

70-4334

Philmore # 70-4334

  • Insulation Displacement
  • 34 Pos. 2.54mm IDT RA
  • Length: 2.073"
  • Cable Mount

40 Position Card Edge Connector

Mfg: Philmore

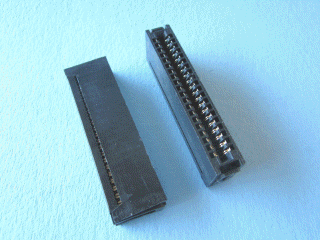

70-4340

Philmore # 70-4340

  • Insulation Displacement
  • 40 Pos. 2.54mm IDT RA
  • Length: 2.373"
  • Cable Mount

50 Position Card Edge Connector

Mfg: Philmore

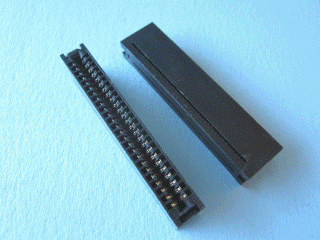

70-4350

Philmore # 70-4350

  • Insulation Displacement
  • 50 Pos. 2.54mm IDT RA
  • Length: 2.873"
  • Cable Mount

50 Position Card Edge IDE Connector

Mfg: Amphenol

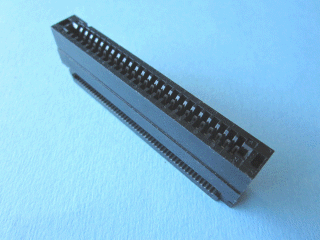

H6158

Amphenol # H6158

  • Length: 2.959"
  • Width: .367"
  • Thickness: .872"
