DC Reed Dual In-Line Relays

831C-2 - Solid State Relay

Mfg: Gordos
831C-2

Specifications:

  • SPDT
  • 6VDC 5Amp
  • W/Diode, DIP

Gordos # 831C-2

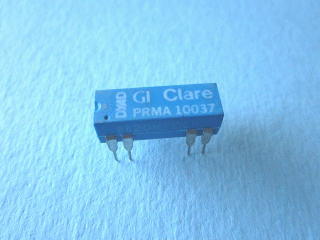

PRMA 10037 - Clare Relay

Mfg: Clare
PRMA 10037

Specifications:

  • 5 Volt
  • SPST
  • Normally Open, Momentary Action

Clare # PRMA 10037

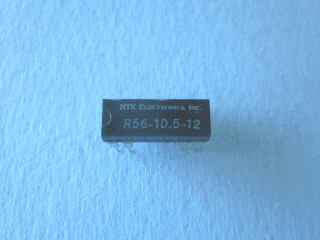

12VDC - SPDT-NO - NTE Relay

Mfg: NTE Inc.
R56-1D.5-12

Specifications:

  • Nominal Voltage: 12VDC
  • Contact Arrangement:  SPDT-NO
  • Coil Res. Ohms:  1200
  • Maximum Contact Current: .5-Amp

NTE # R56-1D.5-12

24VDC - SPDT-NO - NTE Relay

Mfg: NTE Inc.
R56-1D.5-24

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  SPDT-NO
  • Coil Res. Ohms:  2200
  • Maximum Contact Current: .5-Amp

NTE # R56-1D.5-24

12VDC - SPDT - NTE Relay

Mfg: NTE Inc.
R56-5D.5-12

Specifications:

  • Nominal Voltage: 12VDC
  • Contact Arrangement:  SPDT
  • Coil Res. Ohms:  500
  • Maximum Contact Current: .5-Amp

NTE # R56-5D.5-12

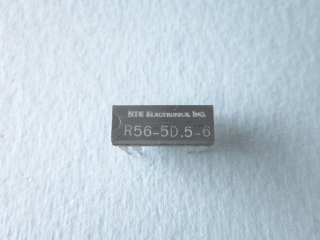

5VDC - DPST-NO - NTE Relay

Mfg: NTE Inc.
R56-5D.5-6

Specifications:

  • Nominal Voltage: 5VDC
  • Contact Arrangement:  DPST-NO
  • Coil Res. Ohms:  200
  • Maximum Contact Current: .5-Amp

NTE # R56-5D.5-6

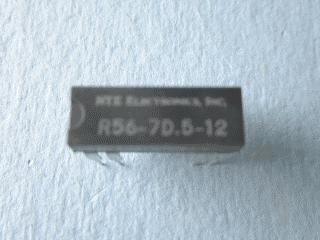

12VDC - DPST-NO - NTE Relay

Mfg: NTE Inc.
R56-7D.5-12

Specifications:

  • Nominal Voltage: 12VDC
  • Contact Arrangement:  DPST-NO
  • Coil Res. Ohms:  500
  • Maximum Contact Current: .5-Amp

NTE # R56-7D.5-12

24VDC - DPST-NO - NTE Relay

Mfg: NTE Inc.
R56-7D.5-24

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  DPST-NO
  • Coil Res. Ohms:  2200
  • Maximum Contact Current: .5-Amp

NTE # R56-7D.5-24

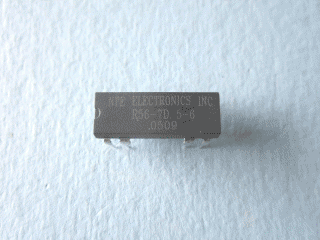

5VDC - DPST-NO - NTE Relay

Mfg: NTE Inc.
R56-7D.5-6

Specifications:

  • Nominal Voltage: 5VDC
  • Contact Arrangement:  DPST-NO
  • Coil Res. Ohms:  200
  • Maximum Contact Current: .5-Amp

NTE # R56-7D.5-6

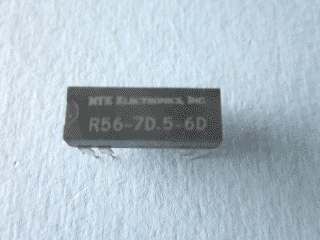

5VDC - DPDT-NO - NTE Relay

Mfg: NTE Inc.
R56-7D.5-6D

Specifications:

  • Nominal Voltage: 5VDC
  • Contact Arrangement:  DPST-NO
  • Coil Res. Ohms:  200
  • Maximum Contact Current: .5-Amp

NTE # R56-7D.5-6D

RLYF1A01`2 - Solid State Relay

Mfg: Philips ECG
RLYF1A012

Specifications:

  • Nominal Voltage: 12VDC
  • Contact Arrangement:  SPDT
  • Coil Res. Ohms:  1000
  • Maximum Contact Current: .5-Amp


ECG # RLYF1A012

RLYF1A024 - Solid State Relay

Mfg: Philips ECG
RLYF1A024

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  SPDT
  • Coil Res. Ohms:  2150
  • Maximum Contact Current: .5-Amp

ECG # RLYF1A024

RLYF1C024 - Solid State Relay

Mfg: Philips ECG
RLYF1C024

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  SPDT
  • Coil Res. Ohms:  2150
  • Maximum Contact Current: .5-Amp

ECG # RLYF1C024

RLYF2A012 - Solid State Relay

Mfg: Philips ECG
RLYF2A012

Specifications:

  • Nominal Voltage: 12VDC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  500
  • Maximum Contact Current: .5-Amp

ECG # RLYF2A012

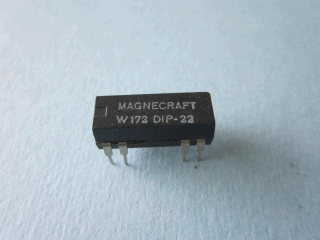

W172DIP-22 - Magnecraft Solid State Relay

Mfg: Magnacraft
W172DIP-22

Specifications:

  • Reed Relay
  • 5-Volt DC
  • DPDT

Magnecraft # W172DIP-22

W172DIP-5 - 5/6 VDC DIP Relay

Mfg: Magnecraft
W172DIP-5
magnecraft-w172dip-5

Specifications:

  • Nominal Voltage: 5VDC
  • Contact Arrangement:  SPDT
  • Coil Res. Ohms:  200
  • Maximum Contact Current: .5-Amp
  • DIP/Clamp Diode
  • Non Latching

Magnecraft # W172DIP-5
