12 Volt Relays

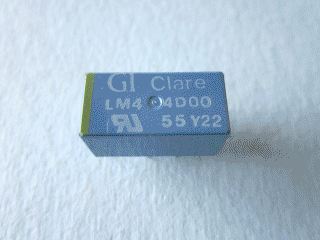

12VDC - DPDT - Clare

Mfg: Clare
LM44D00
No Longer Available

Specifications:

  • Nominal Voltage: 12VDC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  960
  • Nominal Power:  150mW
  • Maximum Contact Current: 2-Amp @ 28VDC or 120VAC

Clare # LM44D00

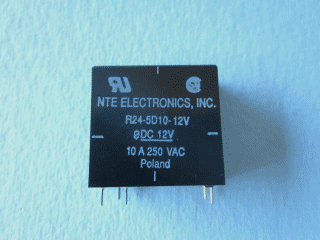

12VDC - SPDT - NTE Relay

Mfg: NTE Inc.
R24-5D10-12V

Specifications:

  • Nominal Voltage: 12VDC
  • Contact Arrangement:  SPDT
  • Coil Res. Ohms:  215
  • Nominal Power:  600mW
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC

NTE # R24-5D10-12V

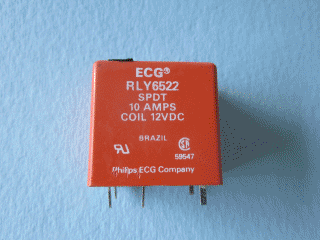

12VDC - SPDT - Philips-ECG Relay

Mfg: ECG Philips
RLY6522

Specifications:

  • Nominal Voltage: 12VDC
  • Contact Arrangement:  SPDT
  • Coil Res. Ohms:  600
  • Nominal Power:  250mW
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC:

ECG # RLY6522

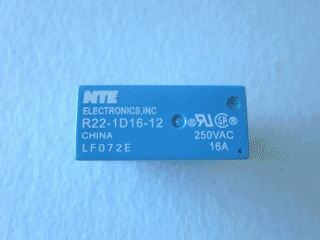

12VDC - SPST-NO - NTE Relay

Mfg: NTE Inc.
R22-1D16-12

Specifications:

  • Nominal Voltage: 12VDC
  • Contact Arrangement:  SPST-NO
  • Coil Res. Ohms:  270
  • Nominal Power:  540mW
  • Maximum Contact Current: 16-Amp @ 30VDC or 120VAC See note

The maximum contact make current is defined as the maximum permitted current for 4 seconds duration with 10% duty cycle immediately after contact closure.

NTE # R22-1D16-12

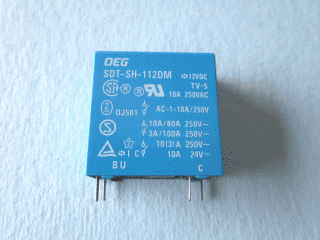

12VDC - SPST - OEG PCB Relay

Mfg: OEG
SDT-SH-112DM

Specifications:

  • Nominal Voltage: 12VDC
  • Contact Arrangement:  SPST-NO
  • Coil Res. Ohms:  270
  • Nominal Power:  540mW
  • Maximum Contact Current: 10-Amp @ 30VDC or 250VAC

SDT-SH-112DM

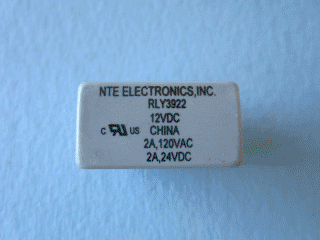

12VDC - SPDT - Philips-ECG Relay

Mfg: ECG Philips
RLY3922

Specifications:

  • Nominal Voltage: 12VDC
  • Contact Arrangement:  SPDT
  • Coil Res. Ohms:  180
  • Nominal Power:  720mW
  • Maximum Contact Current: 2-Amp @ 28VDC

ECG # RLY3922

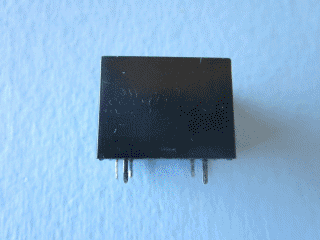

12VDC - SPDT - NTE Relay

Mfg: NTE Inc.
R46-5D12-12

Specifications:

  • Nominal Voltage: 12VDC
  • Contact Arrangement:  SPDT
  • Coil Res. Ohms:  400
  • Nominal Power:  360mW
  • Maximum Contact Current: 12-Amp @ 30VDC or 120VAC

NTE # R46-5D12-12

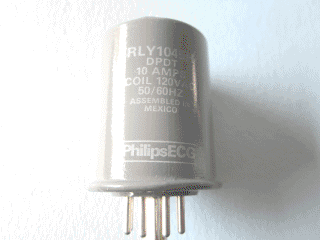

12VAC - DPDT - Philips-ECG Relay

Mfg: ECG Philips
RLY1045H

Specifications:

  • Nominal Voltage: 120VAC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  -
  • Nominal Power:  2.0VA
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC

ECG # RLY1045H

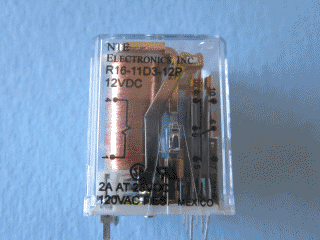

12VDC - DPDT - NTE Relay

Mfg: NTE Inc.
R16-11D3-12P

Specifications:

  • Nominal Voltage: 12VDC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  185
  • Nominal Power:  1W
  • Maximum Contact Current: 3-Amp @ 28VDC or 120VAC

NTE # R16-11D3-12P
