12 Volt Relays

12VDC - SPST - Relay

Mfg: DEC
DJ10

Specifications:

  • 5Amp @ 250 Volt AC1
  • 3Amp @ 250 Volt AC3
  • 5Amp @ 30Volt DC1

DEC - DJ10

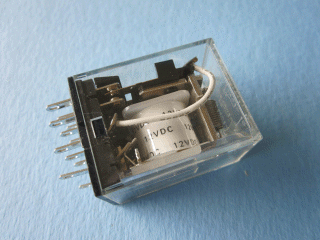

12VDC - 3PDT - NTE Relay

Mfg: NTE Inc.
R12-14D5-12

Specifications:

  • Nominal Voltage: 12VDC
  • Contact Arrangement:  3PDT
  • Coil Res. Ohms:  160
  • Nominal Power:  0.9W
  • Maximum Contact Current: 5-Amp @ 28VDC or 120VAC:

NTE - R12-14D5-12

12VDC - SPDT - NTE Relay

Mfg: NTE Inc.
R25-5D16-12

Specifications:

  • Nominal Voltage: 12VDC
  • Contact Arrangement:  SPDT
  • Coil Res. Ohms:  270
  • Nominal Power:  500mW
  • Maximum Contact Current: 16-Amp @ 28VDC or 120VAC:

NTE - R25-5D16-12

12VAC - DPDT - Philips-ECG Relay

Mfg: ECG Philips
RLY1042

Specifications:

  • Nominal Voltage: 12VAC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  -
  • Nominal Power:  2W
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC:

ECG - RLY1042

12VAC - 3PDT - Philips-ECG Relay

Mfg: ECG Philips
RLY1052

Specifications:

  • Nominal Voltage: 12VAC
  • Contact Arrangement:  3PDT
  • Coil Res. Ohms:  -
  • Nominal Power:  2.75W
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC:

ECG - RLY1052

12VDC - SPDT - Philips-ECG Relay

Mfg: ECG Philips
RLY1322

Specifications:

  • Nominal Voltage: 12VDC
  • Contact Arrangement:  SPDT
  • Coil Res. Ohms:  70
  • Nominal Power:  2W
  • Maximum Contact Current: 30-Amp @ 28VDC or 240VAC:

ECG # RLY1322

R04-5D30-12 NTE Replacement

12VDC - DPDT - Philips-ECG Relay

Mfg: ECG Philips
RLY2142

Specifications:

  • Nominal Voltage: 12VDC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  160
  • Nominal Power:  900mW
  • Maximum Contact Current: 5-Amp @ 28VDC or 120VAC

ECG # RLY2142

12VDC - 4PDT - Philips-ECG Relay

Mfg: ECG Philips
RLY2162

Specifications:

  • Nominal Voltage: 12VDC
  • Contact Arrangement:  4PDT
  • Coil Res. Ohms:  160
  • Nominal Power:  900mW
  • Maximum Contact Current: 3-Amp @ 28VDC or 120VAC

ECG # RLY2162

12VDC - 4PDT - Philips-ECG Relay

Mfg: ECG Philips
RLY2562

Specifications:

  • Nominal Voltage: 12VDC
  • Contact Arrangement:  4PDT
  • Coil Res. Ohms:  185
  • Nominal Power:  .75W
  • Maximum Contact Current: 5-Amp @ 28VDC or 120VAC

ECG # RLY2562

12VAC - SPDT - Philips-ECG Relay

Mfg: ECG Philips
RLY6422

Specifications:

  • Nominal Voltage: 12VAC
  • Contact Arrangement:  SPDT
  • Coil Res. Ohms:  -
  • Nominal Power:  1W
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC

ECG # RLY6422

12VDC - DPDT - Philips-ECG Relay

Mfg: ECG Philips
RLY7942

Specifications:

  • Nominal Voltage: 12VDC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  120
  • Nominal Power:  1.2W
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC

ECG # RLY7942

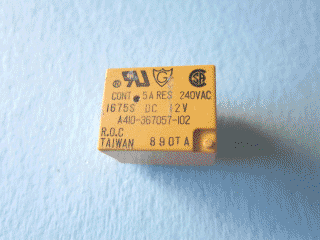

12VDC - SPDT - Guardian Relay

Mfg: Guardian
A410-367057-102

Specifications:

  • Nominal Voltage: 12VDC
  • Contact Arrangement:  SPDT
  • Contacts: 5-Amps 240VAC
  • PCB Mount

Guardian # A410-367057-102

12VDC - SPDT - NTE Relay

Mfg: NTE Inc.
R48-5D10-12

Specifications:

  • Nominal Voltage: 12VDC
  • Contact Arrangement:  SPDT
  • Coil Res. Ohms:  600
  • Nominal Power:  250mW
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC

NTE # R48-5D10-12

12VDC - DPDT - Magnecraft

Mfg: Magnecraft
W67PCX-7

Specifications:

  • Nominal Voltage: 12VDC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  700
  • Nominal Power:  1W
  • Maximum Contact Current: 5-Amp @ 28VDC or 120VAC

Magnecraft # W67PCX-7

12VAC - DPDT - NTE Relay

Mfg: NTE Inc.
R14-11A10-12

Specifications:

  • Nominal Voltage: 12VAC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  -
  • Nominal Power:  1.2VA
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC

NTE # R14-11A10-12

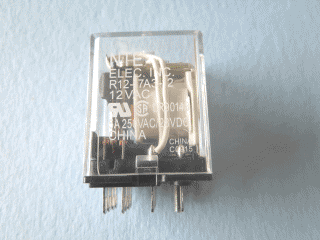

12VAC - 4PDT - NTE Relay

Mfg: NTE Inc.
R12-17A3-12

Specifications:

  • Nominal Voltage: 12VAC
  • Contact Arrangement:  4PDT
  • Coil Res. Ohms:  -
  • Nominal Power:  1.2VA
  • Maximum Contact Current: 5-Amp @ 28VDC or 120VAC

NTE # R12-17A3-12

12VDC - 4PDT - NTE Relay

Mfg: NTE Inc.
R16-17D5-12

Specifications:

  • Nominal Voltage: 12VDC
  • Contact Arrangement:  4PDT
  • Coil Res. Ohms:  185
  • Nominal Power:  1W
  • Maximum Contact Current: 3-Amp @ 28VDC or 120VAC

NTE # R16-17D5-12

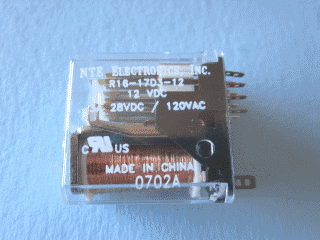

12VDC - DPDT - NTE Relay

Mfg: NTE Inc.
R16-17D3-12

Specifications:

  • Nominal Voltage: 12VDC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  185
  • Nominal Power:  0.75W
  • Maximum Contact Current: 3-Amp @ 28VDC or 120VAC

NTE # R16-17D3-12

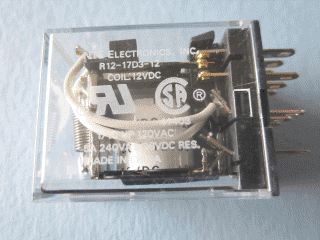

12VDC - 4PDT - NTE Relay

Mfg: NTE Inc.
R12-17D3-12

Specifications:

  • Nominal Voltage: 12VDC
  • Contact Arrangement:  4PDT
  • Coil Res. Ohms:  160
  • Nominal Power:  0.9W
  • Maximum Contact Current: 3-Amp @ 28VDC or 120VAC

NTE # R12-17D3-12

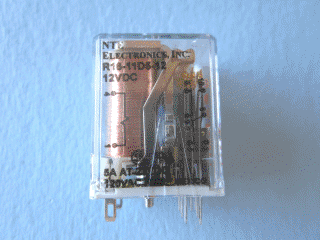

12VDC - DPDT - NTE Relay

Mfg: NTE Inc.
R16-11D5-12

Specifications:

  • Nominal Voltage: 12VDC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  185
  • Nominal Power:  0.75W
  • Maximum Contact Current: 5-Amp @ 28VDC or 120VAC

NTE # R16-11D5-12

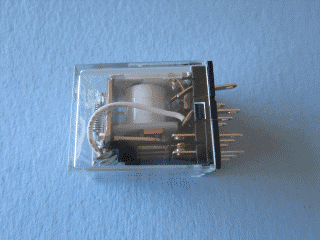

12VAC - 3PDT - NTE Relay

Mfg: NTE Inc.
R12-14A5-12

Specifications:

  • Nominal Voltage: 12VAC
  • Contact Arrangement:  3PDT
  • Coil Res. Ohms:  -
  • Nominal Power:  1.2VA
  • Maximum Contact Current: 5-Amp @ 28VDC or 120VAC

NTE # R12-14A5-12

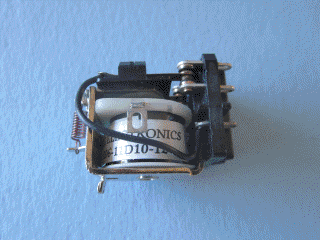

12VDC - DPDT - NTE Relay

Mfg: NTE Inc.
R06-11D10-12

Specifications:

  • Nominal Voltage: 12VDC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  120
  • Nominal Power:  1.0W
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC:\

NTE # R06-11D10-12

12VAC - 3PDT - NTE Relay

Mfg: NTE Inc.
R10-14A10-12

Specifications:

  • Nominal Voltage: 12VAC
  • Contact Arrangement:  3PDT
  • Coil Res. Ohms:  -
  • Nominal Power:  2.0VA
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC

NTE # R10-14A10-12

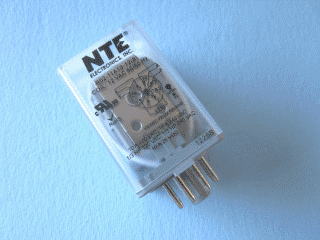

12VAC - DPDT - NTE Relay

Mfg: NTE Inc.
R02-11A10-12

Specifications:

  • Nominal Voltage: 12VAC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  -
  • Nominal Power:  2.0VA
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC

NTE # R02-11A10-12

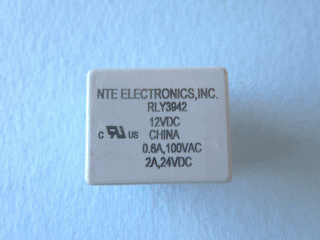

12VDC - DPDT - Philips-ECG Relay

Mfg: ECG Philips
RLY3942
No Longer Available

Specifications:

  • Nominal Voltage: 12VDC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  170
  • Nominal Power:  860mW
  • Maximum Contact Current: 2-Amp @ 28VDC

ECG # RLY3942
