24 Volt Relays

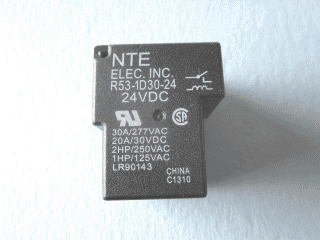

24VDC - SPDT-NO - NTE Relay

Mfg: NTE Inc.
R53-1D30-24

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  SPDT-NO
  • Coil Res. Ohms:  660
  • Nominal Power:  900mW
  • Maximum Contact Current: 30-Amp @ 28VDC or 240VAC

NTE # R53-1D30-24

24VAC - 3PDT - Philips-ECG Relay

Mfg: ECG Philips
RLY1053

Specifications:

  • Nominal Voltage: 24VAC
  • Contact Arrangement:  3PDT
  • Coil Res. Ohms:  -
  • Nominal Power:  2.75W
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC

ECG # RLY1053

24VDC - 4PDT - Philips-ECG Relay

Mfg: ECG Philips
RLY1763

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  4PDT
  • Coil Res. Ohms:  130
  • Nominal Power:  4.4W
  • Maximum Contact Current: 25-Amp @ 28VDC or 120VAC

ECG # RLY1763

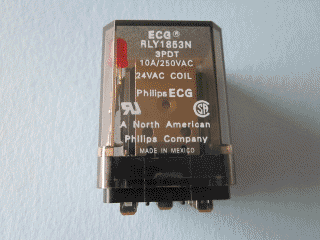

24VAC - 3PDT - Philips-ECG Relay

Mfg: ECG Philips
RLY1853N

Specifications:

  • Nominal Voltage: 24VAC
  • Contact Arrangement:  3PDT
  • Coil Res. Ohms:  -
  • Nominal Power:  2.0VAC
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC

ECG # RLY1853N

24VDC - SPDT - Philips-ECG Relay

Mfg: ECG Philips
RLY1923

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  SPDT
  • Coil Res. Ohms:  470
  • Nominal Power:  1.2W
  • Maximum Contact Current: 10-Amp @ 28VDC or 240VAC

ECG # RLY1923

24VAC - 4PDT - Philips-ECG Relay

Mfg: ECG Philips
RLY2063

Specifications:

  • Nominal Voltage: 24VAC
  • Contact Arrangement:  4PDT
  • Coil Res. Ohms:  180
  • Nominal Power:  1.5W
  • Maximum Contact Current: 3-Amp @ 28VDC or 120VAC

ECG # RLY2063

24VAC - DPDT - Philips-ECG Relay

Mfg: ECG Philips
RLY2243

Specifications:

  • Nominal Voltage: 24VAC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  170
  • Nominal Power:  1.2W
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC

ECG # RLY2243

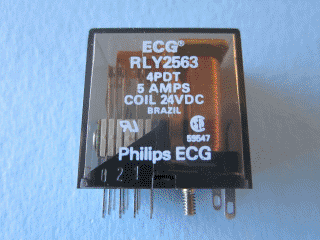

24VDC - 4PDT - Philips-ECG Relay

Mfg: ECG Philips
RLY2563

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  4PDT
  • Coil Res. Ohms:  700
  • Nominal Power:  1W
  • Maximum Contact Current: 5-Amp @ 28VDC or 120VAC

ECG # RLY2563

R16-17D5-24 - NTE Replacement

24VDC - DPDT - Philips-ECG Relay

Mfg: ECG Philips
RLY2743

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  700
  • Nominal Power:  1W
  • Maximum Contact Current: 3-Amp @ 28VDC or 120VAC

ECG # RLY2743

24VDC - DPDT - Philips-ECG Relay

Mfg: ECG Philips
RLY2763

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  700
  • Nominal Power:  1W
  • Maximum Contact Current: 3-Amp @ 28VDC or 120VAC

ECG # RLY2763

R16-17D3-24 - NTE Replacement

24VDC - SPDT - Philips-ECG Relay

Mfg: ECG Philips
RLY3323

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  SPDT
  • Coil Res. Ohms:  1100
  • Nominal Power:  600mW
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC:

EVG # RLY3323

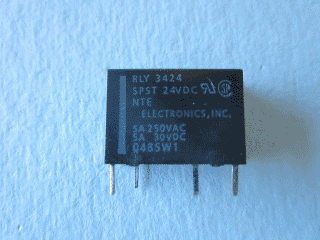

24VDC - SPST - Philips-ECG Relay

Mfg: ECG Philips
RLY3424

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  SPST-NO
  • Coil Res. Ohms:  2880
  • Nominal Power:  200mW
  • Maximum Contact Current: 5-Amp @ 30VDC or 250VAC

ECG # RLY3424

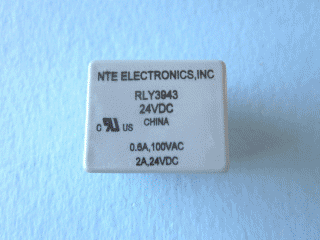

24VDC - DPDT - Philips-ECG Relay

Mfg: NTE Inc.
RLY3943

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  670
  • Nominal Power:  860mW
  • Maximum Contact Current: 2-Amp @ 28VDC

NTE # RLY3943

RLY3943 - ECG Replacement

24VDC - DPDT - Philips-ECG Relay

Mfg: ECG Philips
RLY5143R

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  3900
  • Nominal Power:  150mW
  • Maximum Contact Current: 2-Amp @ 28VDC or 120VAC

ECG # RLY5143R

24VAC - SPDT - Philips-ECG Relay

Mfg: ECG Philips
RLY6423

Specifications:

  • Nominal Voltage: 24VAC
  • Contact Arrangement:  SPDT
  • Coil Res. Ohms:  -
  • Nominal Power:  1W
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC

ECG # RLY6423

24VDC - SPDT - Philips-ECG Relay

Mfg: ECG Philips
RLY6523

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  SPDT
  • Coil Res. Ohms:  1200
  • Nominal Power:  500mW
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC

ECG # RLY6523

24VDC - SPDT - Philips-ECG Relay

Mfg: ECG Philips
RLY6823

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  SPDT
  • Coil Res. Ohms:  280
  • Nominal Power:  -
  • Maximum Contact Current: 16-Amp @ 28VDC or 120VAC

ECG # RLY6823

R25-5A16-24 - NTE Replacement
