24 Volt Relays

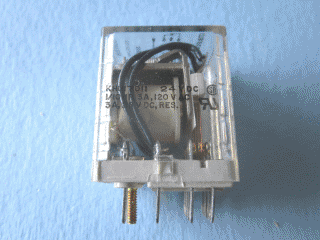

24VDC - 4PDT Potter Brumfield Relay

Mfg: Potter Brumfield
KHU17D11
  • 4PDT, 3-Amp, 24-Volt DC
Potter Brumfield # KHU17D11

SPST-NO 24VDC Through Hole Mount

T77V1D3-24
  • General Purpose
  • SPST
  • 24-Volt @ 3-Amp

Part # T77V1D3-24

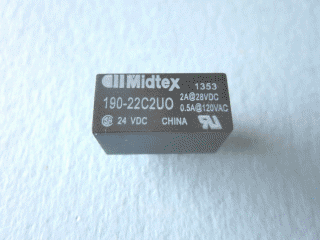

24VDC - DPDT - Relay Midtex

Mfg: Midtex
190-22C2UO

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  2880
  • Nominal Power:  200mW
  • Maximum Contact Current: 2-Amp @ 28VDC or 120VAC

Midtex # 190-22C2UO

24VAC / DPDT - General Purpose Relay

Mfg: Square D
48075
square d - 48075

Specifications:

  • 10 Amp @ 24VAC 50/60Hz
  • Class 8501
  • Type KP-12

Square D # 48075

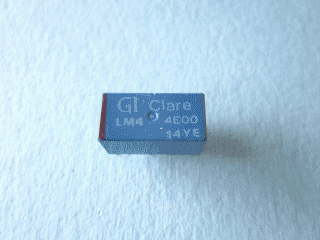

24VDC - DPDT - Clare

Mfg: Clare
LM44E00

Specifications

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  2880
  • Nominal Power:  150mW
  • Maximum Contact Current: 2-Amp @ 28VDC or 120VAC
  • NTE Replacement # R40-11D2-24

Clare # LM44E00

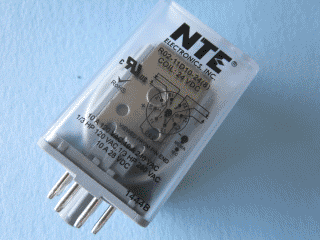

24VAC - DPDT - NTE Relay

Mfg: NTE Inc.
R02-11D10-24

Specifications:

  • Nominal Voltage: 24VAC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  470
  • Nominal Power:  1.0W
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC

NTE # R02-11D10-24

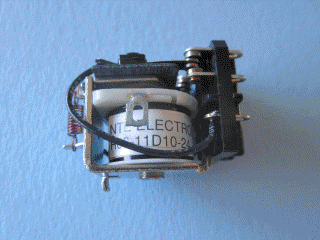

24VDC - DPDT - NTE Relay

Mfg: NTE Inc.
R06-11D10-24

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  470
  • Nominal Power:  1.0W
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC

NTE # R06-11D10-24

24VAC - DPDT - NTE Relay

Mfg: NTE Inc.
R10-11A10-24

Specifications:

  • Nominal Voltage: 24VAC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  -
  • Nominal Power:  2.0VA
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC

NTE # R10-11A10-24

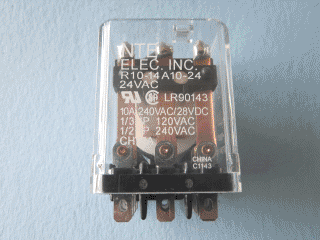

24VAC - 3PDT - NTE Relay

Mfg: NTE Inc.
R10-14A10-24

Specifications:

  • Nominal Voltage: 24VAC
  • Contact Arrangement:  3PDT
  • Coil Res. Ohms:  -
  • Nominal Power:  2.75VA
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC

NTE # R10-14A10-24

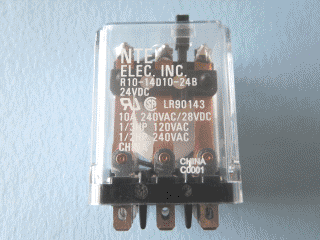

24VDC - 3PDT - NTE Relay

Mfg: NTE Inc.
R10-14D10-24B

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  3PDT
  • Coil Res. Ohms:  470
  • Nominal Power:  1.2W
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC

NTE # R10-14D10-24B

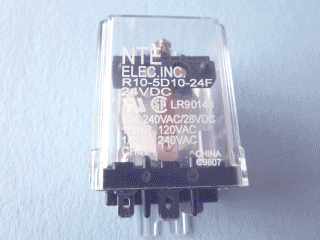

24VDC - SPDT - NTE Relay

Mfg: NTE
R10-5D10-24F

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  SPDT
  • Coil Res. Ohms:  470
  • Nominal Power:  1.2W
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC

NTE # R10-5D10-24F

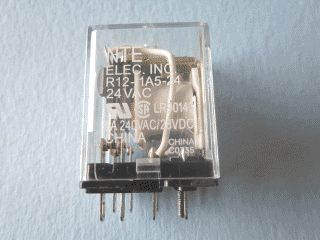

24VAC - DPDT - NTE Relay

Mfg: NTE
R12-11A5-24

Specifications:

  • Nominal Voltage: 24VAC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  -
  • Nominal Power:  1.2VA
  • Maximum Contact Current: 5-Amp @ 28VDC or 120VAC

NTE # R12-11A5-24

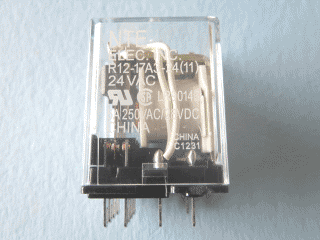

24VAC - 4PDT - NTE Relay

Mfg: NTE Inc.
R12-17A3-24

Specifications:

  • Nominal Voltage: 24VAC
  • Contact Arrangement:  4PDT
  • Coil Res. Ohms:  -
  • Nominal Power:  1.2VA
  • Maximum Contact Current: 5-Amp @ 28VDC or 120VAC

NTE # R12-17A3-24

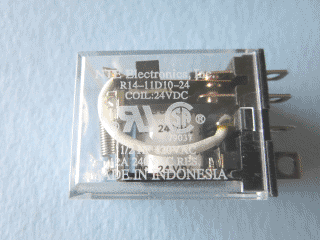

24VDC - 3PDT - NTE Relay

Mfg: NTE Inc.
R14-11D10-24

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  3PDT
  • Coil Res. Ohms:  410
  • Nominal Power:  0.9W
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC

NTE # R14-11D10-24

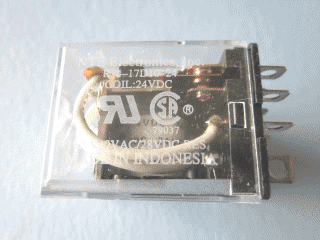

24VDC - 4PDT - NTE Relay

Mfg: NTE Inc.
R14-17D10-24

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  4PDT
  • Coil Res. Ohms:  350
  • Nominal Power:  0.9W
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC

NTE # R14-17D10-24

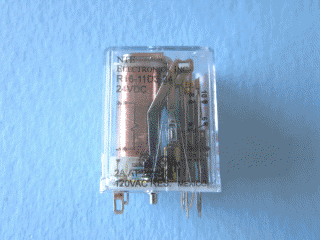

24VDC - DPDT - NTE Relay

Mfg: NTE Inc.
R16-11D3-24

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  700
  • Nominal Power:  1W
  • Maximum Contact Current: 3-Amp @ 28VDC or 120VAC

NTE # R16-11D3-24

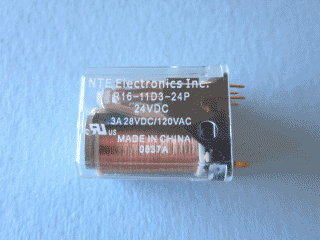

24VDC - DPDT - NTE Relay

Mfg: NTE Inc.
R16-11D3-24P

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  700
  • Nominal Power:  1W
  • Maximum Contact Current: 3-Amp @ 28VDC or 120VAC

NTE # R16-11D3-24P

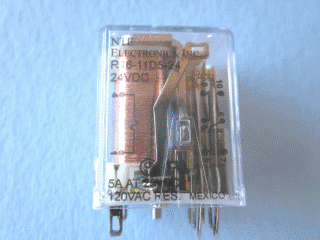

24VDC - DPDT - NTE Relay

Mfg: NTE Inc.
R16-11D5-24

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement.: DPDT
  • Coil Res. Ohms: 700
  • Nominal Power: 1 Watt
  • Maximum Contact Current: 5-Amp @ 28VDC or 120VAC

NTE # R16-11D5-24

24VDC - 4PDT - NTE Relay

Mfg: NTE Inc.
R16-17D5-24

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement.: 4PDT
  • Coil Res. Ohms: 700
  • Nominal Power: 1 Watt
  • Maximum Contact Current: 5-Amp @ 28VDC or 120VAC

NTE # R16-17D5-24

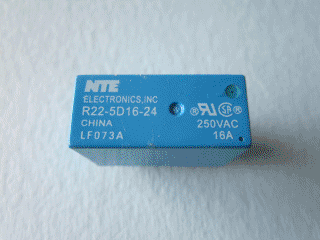

24VDC - SPDT - NTE Relay

Mfg: NTE Inc.
R22-5D16-24

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  SPDT
  • Coil Res. Ohms:  1100
  • Nominal Power:  540mW
  • Maximum Contact Current: 16-Amp @ 30VDC or 120VAC See note

The maximum contact make current is defined as the maximum permitted current for 4 seconds duration with 10% duty cycle immediately after contact closure.

NTE # R22-5D16-24

24VDC - DPDT - NTE Relay

Mfg: NTE Inc.
R24-5D10-24

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  700
  • Nominal Power:  1W
  • Maximum Contact Current: 3-Amp @ 28VDC or 120VAC

NTE # R24-5D10-24

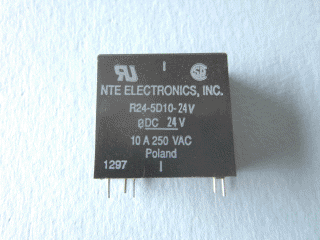

24VDC - SPDT - NTE Relay

Mfg: NTE Inc.
R24-5D10-24V

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  SPDT
  • Coil Res. Ohms:  740
  • Nominal Power:  600mW
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC

NTE # R24-5D10-24V

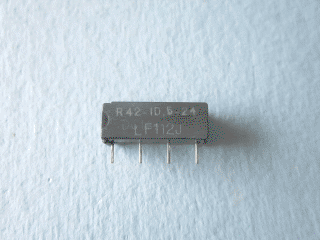

24VDC - SPDT-NO - NTE Relay

Mfg: NTE Inc.
R42-1D.5-24

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  SPDT-NO
  • Coil Res. Ohms:  2200
  • Nominal Power:  180mW
  • Maximum Contact Current: .5-Amp

NTE # R42-1D.5-24

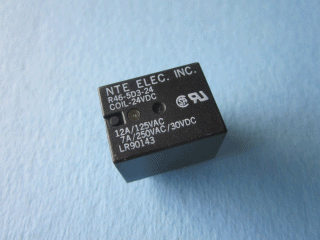

24VDC - SPDT - NTE Relay

Mfg: NTE
R46-5D3-24

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  SPDT
  • Coil Res. Ohms:  1600
  • Nominal Power:  360mW
  • Maximum Contact Current: 5-Amp @ 30VDC or 120VAC

NTE # R46-5D3-24

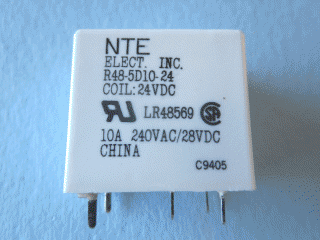

24VDC - SPDT - NTE Relay

Mfg: NTE Inc.
R48-5D10-24

Specifications:

  • Nominal Voltage: 24VDC
  • Contact Arrangement:  SPDT
  • Coil Res. Ohms:  2400
  • Nominal Power:  250mW
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC

NTE # R48-5D10-24
