5-6 Volt Relays

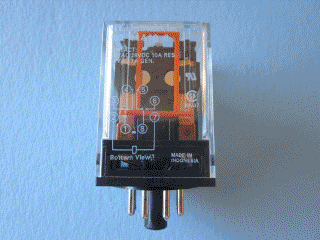

6VAC - DPDT - NTE Relay

Mfg: NTE Inc.
R02-11A10-6

Specifications:

  • Nominal Voltage: 6VAC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  -
  • Nominal Power:  2.0VA
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC

NTE # R02-11A10-6

5/6VDC - DPDT - Philips-ECG Relay

Mfg: ECG Philips
RLY5140

Specifications:

  • Nominal Voltage: 5-6VDC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  70
  • Nominal Power:  400mW
  • Maximum Contact Current: 2-Amp @ 28VDC or 120VAC

ECG # RLY5140

5VDC - SPDT - NTE Relay

Mfg: NTE Inc.
R45-5D20-5/6

Specifications:

  • Nominal Voltage: 5VDC
  • Contact Arrangement:  SPDT
  • Coil Res. Ohms:  28
  • Nominal Power:  600mW
  • Maximum Contact Current: 20-Amp @ 28VDC or 240VAC

NTE # R45-5D20-5/6

6VDC - DPDT - NTE Relay

Mfg: NTE Inc.
R14-11D10-6

Specifications:

  • Nominal Voltage: 6VDC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  40
  • Nominal Power:  0.9W
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC

NTE # R14-11D10-6

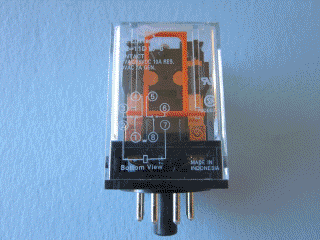

6VDC - DPDT - NTE Relay

Mfg: NTE Inc.
R02-11D10-6

Specifications:

  • Nominal Voltage: 6VDC
  • Contact Arrangement:  DPDT
  • Coil Res. Ohms:  30
  • Nominal Power:  1.2VA
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC

NTE # R02-11D10-6
